Defense

June 8, 2016


Wheels up: Hill shop improves F-35 tire change process

Todd Cromar
Hill AFB, Utah

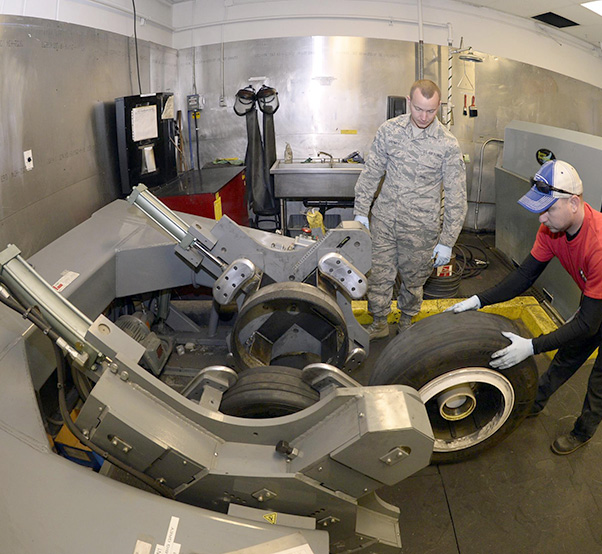

TSgt. James Speicher, right, an air reserve technician with the 419th Maintenance Squadron, rolls an F-35 Lightning II wheel into a tire changing machine May 20, 2016, while Senior Airman Joseph Sprowls, of the 388th Maintenance Squadron, looks on in the wheel and tire shop at Hill Air Force Base, Utah. The machine depicted is a legacy tool which has been adapted via a fabricated bead breaker to be used in changing F-35 tires.

For years, the wheel shop at Hill Air Force Base, Utah, has disassembled, inspected, repaired, built, and delivered reliable tires and wheels for F-16 Fighting Falcons.

That reliability and 24-hour turnaround service will remain intact as the base’s operational mission transitions to the F-35A Lightning II.

Three active-duty airmen and an air reserve technician work in the 388th Maintenance Squadron’s wheel and tire shop, providing wheels for aircraft.

“We have been building tires for the F-16 for decades, which means that the tools and processes used to accomplish this task are proven,” said TSgt. Astolfo Mercado Cruz, the shop’s NCO in charge. “For the F-35, things are getting started, so we have to use our hands-on knowledge and experience to ensure the process is streamlined and efficient.”

The F-35 tire change process has become more efficient thanks to an innovation devised by the shop’s airmen.

In conjunction with the first F-35s arriving to Hill AFB last year, the wheel shop received a new tire changing machine — a hydraulic tool used to separate tires from rims — for exclusive use with the F-35. Although the new tool is adequate, the shop’s airmen immediately recognized inefficiencies.

Four workers are required to lift an F-35 wheel onto the new machine, while only one worker is needed to roll a wheel into the shop’s legacy tire changing machine and another to operate the tool. Additionally, the new machine employs a hand-operated pump as opposed to the automatic pump used on the legacy machine.

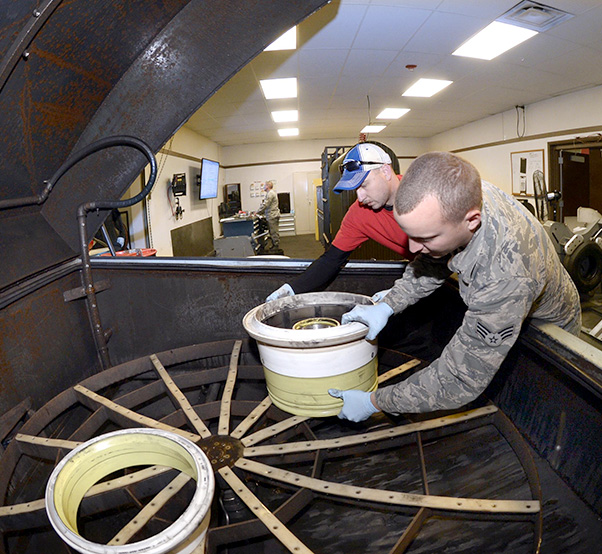

TSgt. James Speicher, an air reserve technician with the 419th Maintenance Squadron, and Senior Airman Joseph Sprowls, of the 388th Maintenance Squadron, load F-35 Lightning II wheels into a parts washer May 20, 2016, at Hill Air Force Base, Utah.

Drawing on years of experience changing F-16 tires, the shop’s airmen felt they could make the process of changing F-35 tires better if the legacy tire changing machine could be used. After studying the legacy machine, it was determined the tool would work with F-35 wheels if its bead breaker — a compressing component which actually pushes on the tire, separating it from its rim via hydraulic pressure — could be adapted for use.

After coming up with a solution, they provided their design modification proposal to the 388th MXS’s metals technology shop. There, airmen fabricated a ring-shaped compressing component and the braces necessary for adapting it to the legacy tire changing machine.

“Using the legacy machine means that we can load the F-35 tires by rolling them on instead of lifting them on as we have to do on the newer, manual machine,” Mercado Cruz said. “This saves a lot of time because only two personnel are involved, not four. By using the automated process, it takes half the time, which allows us to provide assets to the warfighter a lot quicker.”

Aircraft engineers recently verified the modified bead breaker for use on the legacy tire changing machine and joint technical data is being updated so that the setup can be used on all F-35 variants, benefiting not only Hill’s F-35s but those throughout the Defense Department as well as international partners.

This success will continue, according to Mercado Cruz, who noted that other tool modifications are in the works.

“The innovations keep on coming,” he said. “As more F-35s arrive, we’ll continue looking for ways to do things better.”
