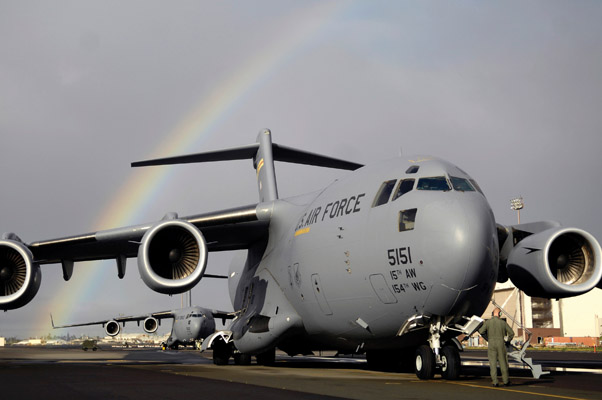

C-17 Globemaster III

0
79

The C-17 Globemaster III is the newest, most flexible cargo aircraft to enter the airlift force. The C-17 is capable of rapid strategic delivery of troops and all types of cargo to main operating bases or directly to forward bases in the deployment area. The aircraft can perform tactical airlift and airdrop missions and can transport litters and ambulatory patients during aeromedical evacuations when required. The inherent flexibility and performance of the C-17 force improve the ability of the total airlift system to fulfill the worldwide air mobility requirements of the United States.

The ultimate measure of airlift effectiveness is the ability to rapidly project and sustain an effective combat force close to a potential battle area. Threats to U.S. interests have changed in recent years, and the size and weight of U.S.-mechanized firepower and equipment have grown in response to improved capabilities of potential adversaries. This trend has significantly increased air mobility requirements, particularly in the area of large or heavy outsize cargo. As a result, newer and more flexible airlift aircraft are needed to meet potential armed contingencies, peacekeeping or humanitarian missions worldwide. The C-17 is capable of meeting today’s demanding airlift missions.

Reliability and maintainability are two outstanding benefits of the C-17 system. Current operational requirements impose demanding reliability and maintainability. These requirements include an aircraft mission completion success probability rate of 92 percent, only 20 aircraft maintenance man-hours per flying hour, and full and partial mission availability rates of 74.7 and 82.5 percent, respectively. The Boeing warranty assures these figures will be met.

General Characteristics

Primary Function: Cargo and troop transport

Prime Contractor: Boeing Company

Power Plant: Four Pratt & Whitney F117-PW-100 turbofan engines

Thrust: 40,440 pounds, each engine

Wingspan: 169 feet 10 inches (to winglet tips) (51.75 meters)

Length: 174 feet (53 meters)

Height: 55 feet 1 inch (16.79 meters)

Cargo Compartment: length, 88 feet (26.82 meters); width, 18 feet (5.48 meters); height, 12 feet 4 inches (3.76 meters)

Speed: 450 knots at 28,000 feet (8,534 meters) (Mach .74)

Service Ceiling: 45,000 feet at cruising speed (13,716 meters)

Range: Global with in-flight refueling

Crew: Three (two pilots and one loadmaster)

Aeromedical Evacuation Crew: A basic crew of five (two flight nurses and three medical technicians) is added for aeromedical evacuation missions. Medical crew may be altered as required by the needs of patients

Maximum Peacetime Takeoff Weight: 585,000 pounds (265,352 kilograms)

Load: 102 troops/paratroops; 36 litter and 54 ambulatory patients and attendants; 170,900 pounds (77,519 kilograms) of cargo (18 pallet positions)

Unit Cost: $202.3 million (fiscal 1998 constant dollars)

Date Deployed: June 1993
