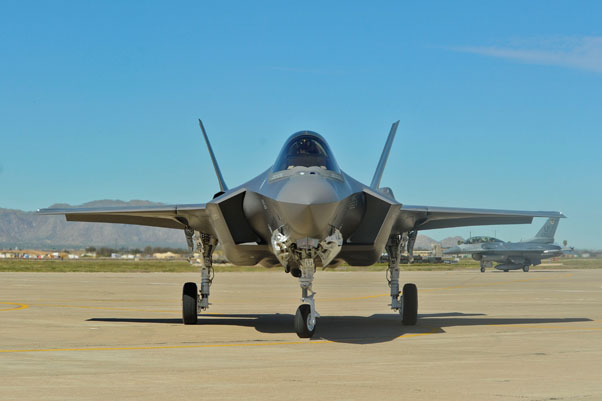

F-35A Lightning II Conventional Takeoff and Landing Variant

0
123

The F-35A is the U.S. Air Force’s latest fifth-generation fighter. It will replace the U.S. Air Force’s aging fleet of F-16 Fighting Falcons and A-10 Thunderbolt II’s, which have been the primary fighter aircraft for more than 20 years, and bring with it an enhanced capability to survive in the advanced threat environment in which it was designed to operate. With its aerodynamic performance and advanced integrated avionics, the F-35A will provide next-generation stealth, enhanced situational awareness, and reduced vulnerability for the United States and allied nations.

The conventional takeoff and landing (CTOL) F-35A gives the U.S. Air Force and allies the power to dominate the skies – anytime, anywhere. The F-35A is an agile, versatile, high-performance, 9g capable multirole fighter that combines stealth, sensor fusion, and unprecedented situational awareness.

The F-35A’s advanced sensor package is designed to gather, fuse and distribute more information than any fighter in history, giving operators a decisive advantage over all adversaries. Its processing power, open architecture, sophisticated sensors, information fusion and flexible communication links make the F-35 an indispensable tool in future homeland defense, Joint and Coalition irregular warfare and major combat operations.

Because logistics support accounts for two-thirds of an aircraft’s life cycle cost, the F-35 is designed to achieve unprecedented levels of reliability and maintainability, combined with a highly responsive support and training system linked with the latest in information technology. The Autonomic Logistics Information System (ALIS) integrates current performance, operational parameters, current configuration, scheduled upgrades and maintenance, component history, predictive diagnostics (prognostics) and health management, operations scheduling, training, mission planning and service support for the F-35. Essentially, ALIS performs behind-the-scenes monitoring, maintenance and prognostics to support the aircraft and ensure continued health and enhance operational planning and execution.

The F-35’s electronic sensors include the Electro-Optical Distributed Aperture System (DAS). This system provides pilots with situational awareness in a sphere around the aircraft for enhanced missile warning, aircraft warning, and day/night pilot vision.. Additionally, the aircraft is equipped with the Electro-Optical Targeting System (EOTS). The internally mounted EOTS provides extended range detection and precision targeting against ground targets, plus long range detection of air-to-air threats.

The F-35’s helmet mounted display system is the most advanced system of its kind. All the intelligence and targeting information an F-35 pilot needs to complete the mission is displayed on the helmet’s visor.

General Characteristics
Primary Function:
 Multirole fighter
Prime Contractor: Lockheed Martin
Power Plant: One Pratt & Whitney F135-PW-100 turbofan engine
Thrust: 43,000 pounds
Wingspan: 35 feet (10.7 meters)
Length: 51 feet (15.7 meters)
Height: 14 feet (4.38 meters)
Maximum Takeoff Weight: 70,000 pound class
Fuel Capacity: Internal: 18,498 pounds
Payload: 18,000 pounds (8,160 kilograms)
Speed: Mach 1.6 (~1,200 mph)
Range: More than 1,350 miles with internal fuel (1,200+ nautical miles), unlimited with aerial refueling
Ceiling: Above 50,000 feet (15 kilometers)
Armament: Internal and external capability. Munitions carried vary based on mission requirements.
Crew: One
