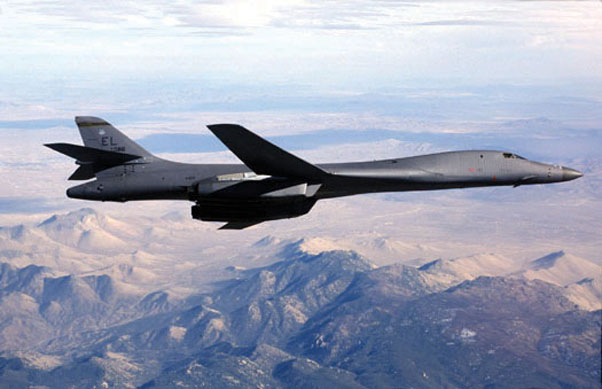

B-1B Lancer

0
290
Advertisement

Carrying the largest payload of both guided and unguided weapons in the Air Force inventory, the multi-mission B-1 is the backbone of America’s long-range bomber force. It can rapidly deliver massive quantities of precision and non-precision weapons against any adversary, anywhere in the world, at any time.

The B-1B’s blended wing/body configuration, variable-geometry wings and turbofan afterburning engines, combine to provide long range, maneuverability and high speed while enhancing survivability. Forward wing settings are used for takeoff, landings, air refueling and in some high-altitude weapons employment scenarios. Aft wing sweep settings – the main combat configuration — are typically used during high subsonic and supersonic flight, enhancing the B-1B’s maneuverability in the low- and high-altitude regimes. The B-1B’s speed and superior handling characteristics allow it to seamlessly integrate in mixed force packages. These capabilities, when combined with its substantial payload, excellent radar targeting system, long loiter time and survivability, make the B-1B a key element of any joint/composite strike force.

The B-1 is a highly versatile, multi-mission weapon system. The B-1B’s synthetic aperture radar is capable of tracking, targeting and engaging moving vehicles as well as self-targeting and terrain-following modes. In addition, an extremely accurate Global Positioning System-aided Inertial Navigation System enables aircrews to navigate without the aid of ground-based navigation aids as well as engage targets with a high level of precision. The addition of a fully integrated data link (FIDL) with Link-16 capability provides improved battlefield situation awareness and secure beyond line of sight reach back connectivity.  In a time sensitive targeting environment, the aircrew can use targeting data received from the Combined Air Operations Center or other command and control assets to strike emerging targets rapidly and efficiently.



General characteristics
Primary function: long-range, multi-role, heavy bomber
Contractor: Boeing, North America (formerly Rockwell International, North American Aircraft); offensive avionics, Boeing Military Airplane; defensive avionics, EDO Corporation
Power plant: four General Electric F101-GE-102 turbofan engine with afterburner
Thrust: 30,000-plus pounds with afterburner, per engine
Wingspan: 137 feet (41.8 meters) extended forward, 79 feet (24.1 meters) swept aft
Length: 146 feet (44.5 meters)
Height: 34 feet (10.4 meters)
Weight: approximately 190,000 pounds (86,183 kilograms)
Maximum takeoff weight: 477,000 pounds (216,634 kilograms)
Fuel capacity: 265,274 pounds (120,326 kilograms)
Payload: 75,000 pounds (34,019 kilograms)
Speed: 900-plus mph (mach 1.2 at sea level)
Range: intercontinental
Ceiling: more than 30,000 feet (9,144 meters)
Armament: 84 500-pound Mk-82 or 24 2,000-pound  Mk-84 general purpose bombs; up to 84 500-pound Mk-62 or 8 2,000-pound Mk-65 Quick Strike naval mines; 30 cluster munitions (CBU-87, -89, -97) or 30 Wind-Corrected Munitions Dispensers (CBU-103, -104, -105); up to 24 2,000-pound GBU-31 or 15 500-pound GBU-38 Joint Direct Attack Munitions; up to 24 AGM-158A Joint Air-to-Surface Standoff Missiles; 15 GBU-54 Laser Joint Direct Attack Munitions
Crew: four (aircraft commander, copilot, and two combat systems officers)
Unit cost: $317 million
Initial operating capability:  October 1986
