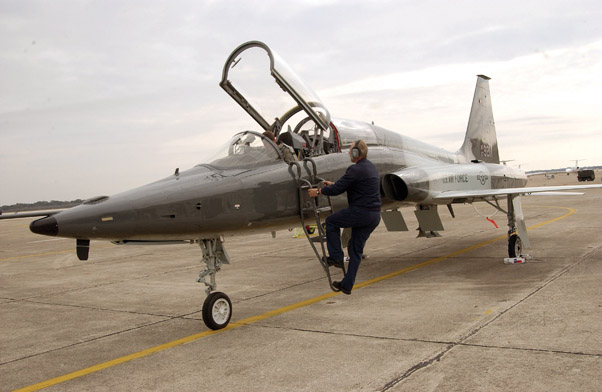

T-38 Talon

The T-38 Talon is a twin-engine, high-altitude, supersonic jet trainer used in a variety of roles because of its design, economy of operations, ease of maintenance, high performance and exceptional safety record. Air Education and Training Command is the primary user of the T-38 for joint specialized undergraduate pilot training. Air Combat Command, Air Force Materiel Command and the National Aeronautics and Space Administration also use the T-38A in various roles.

The T-38 has swept wings, a streamlined fuselage and tricycle landing gear with a steerable nose wheel. Two independent hydraulic systems power the ailerons, rudder and other flight control surfaces. Critical aircraft components are waist high and can be easily reached by maintenance crews.

The T-38C incorporates a “glass cockpit” with integrated avionics displays, head-up display and an electronic “no drop bomb” scoring system. The AT-38B has a gun sight and practice bomb dispenser.

The T-38 needs as little as 2,300 feet (695.2 meters) of runway to take off and can climb from sea level to nearly 30,000 feet (9,068 meters) in one minute. T-38s modified by the propulsion modernization program have approximately 19 percent more thrust, reducing takeoff distance by 9 percent.

The instructor and student sit in tandem on rocket-powered ejection seats in a pressurized, air-conditioned cockpit.

General Characteristics

Primary Function: Advanced jet pilot trainer

Builder: Northrop Corp.

Power Plant: Two General Electric J85-GE-5 turbojet engines with afterburners

Thrust: 2,050 pounds dry thrust; 2,900 with afterburners

Thrust (with PMP): 2,200 pounds dry thrust; 3,300 with afterburners

Length: 46 feet, 4 inches (14 meters)

Height: 12 feet, 10 inches (3.8 meters)

Wingspan: 25 feet, 3 inches (7.6 meters)

Speed: 812 mph (Mach 1.08 at sea level)

Ceiling: Above 55,000 feet (16,764 meters)

Maximum Takeoff Weight: 12,093 pounds (5,485 kilograms)

Range: 1,093 miles

Armament: T-38A/C: none; AT-38B: provisions for practice bomb dispenser

Unit Cost: $756,000 (1961 constant dollars)

Crew: Two, student and instructor

Date Deployed: March 1961
