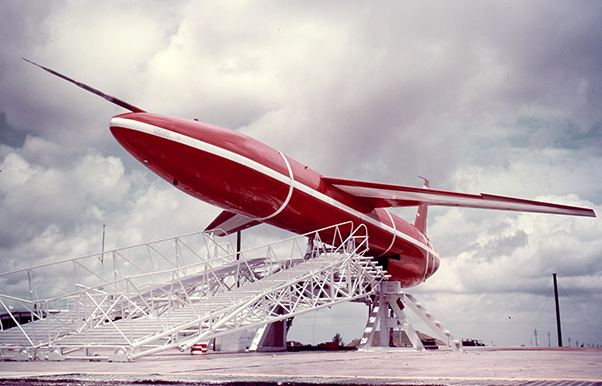

The Northrup SM-62. (Courtesy photograph)
Advertisement

During the 1950s and 1960s, the United States pushed the limits of aerospace vehicle evolution attempting to go faster and higher while exploring the edge of the unknown.

As contractors hoped to clutch a big production contract, new designs jumped off the drawing boards at a rapid pace with many making it to the prototype stage.

At locations around the United States, military and industry teamed together to test aircraft of all types, be it bombers, fighters, transports and others. This time also included the era of the Winged Missile, including Mace, Matador, Snark and BOMARC.

One of most impressive endeavors, North American’s Navaho, pushed the envelope in many areas including design and test.  Capable of navigating halfway around the world at speeds in excess of Mach 2, the Navaho represented all that was state of the art for its time, but all of this advanced technology in one package came at a cost. Technical difficulties, in-flight failures and cost overruns became the Navaho’s Achilles heel.

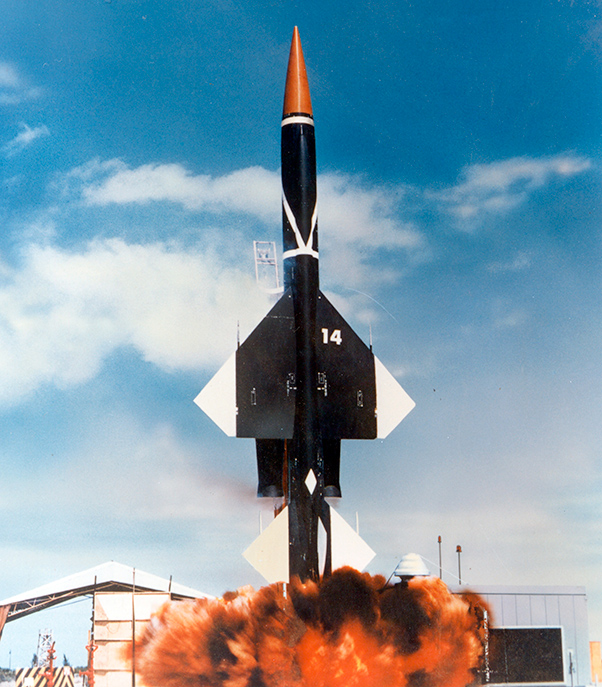

Boeing IM-99 BOMARC (Courtesy photograph)

On Aug. 24, 1945, the Army Air Forces issued a series of military requirements for several surface-to-surface missiles categorized according to range: 175 to 500 miles, 500 to 1,500 miles and 1,500 to 5,000 miles. All necessitated several requirements: a minimum speed of 600 miles per hour; transportable by air, highway, railroad or ship; and designed so major components could be assembled in the field.  Late in 1945, the Air Materiel Command requested proposals from 17 potential contractors, which included North American Aviation who submitted a design for a supersonic surface-to-surface missile on Dec. 28 of that same year.

The AAF initiated Project MX-770 (Materiel, Experimental, #770) on April 22, 1946, by awarding North American Aviation a one-year study and research program leading to the preliminary design of a supersonic guided missile with a range of distances from 175 to 500 miles from its launch point.

Early design studies for the NATIV (North American Test Instrument Vehicle) missile and construction of a launch ramp began under this contract, which ended on April 22, 1947.  The AAF later amended the contract on May 16 to include development of the required component systems. Of importance, as the Industrial Complex continued to mature, the NATIV program gave North American critical experience in the field of long-range rocketry.

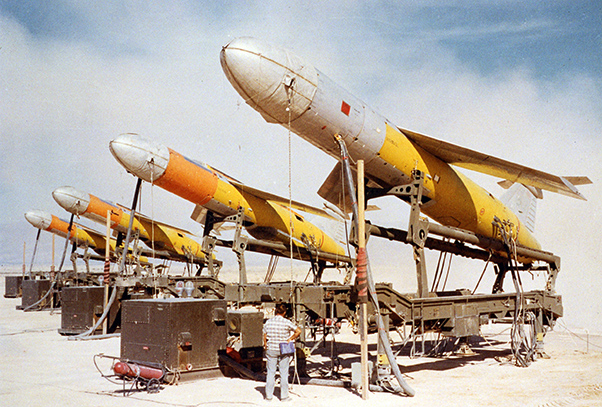

Before ICBMs took over the long-range nuclear delivery mission, winged missiles such as the Northrop SM-62, Martin TM-72 Mace (pictured) and the Boeing IM-99 BOMARC were designed to fulfill that mission. (Courtesy photograph)

With the amended contract, NAA constructed a total of fifteen NATIV missiles with static firings of the first, 14-foot long, NATIV missile beginning in January 1948. The first flight took place at Holloman Air Force Base, N.M., on May 26.  Now designated as the RTV-A-3, North American testers made seven flight attempts with the NATIV missiles; only four actually left the launch tower. North American considered one a success, two partial successes and one failed shortly after leaving the tower with the final flight occurring on Nov. 5.  Because of this, the Air Force saw little use in this data for the follow-on program and postponed future launches. The Air Force terminated the NATIV portion of Project MX-770 early in 1949.

North American Aviation spent the next two years developing technology required for the new, long-range missile program, now referred to as Navaho.

The Air Force required that the operational Navaho have speeds in excess of Mach 3 with a range of 5,500 miles. To reach these requirements, in September 1950, NAA proposed a three-step development program and the Air Force agreed. First, there would be a turbojet powered test vehicle, which would be useful in obtaining data on the guidance system, stability and control, and recovery techniques.  North American initially designated this system as RTV-A-5, Navaho I and subsequently, X-10. Next, NAA planned an interim ramjet-powered missile designated as XSSM-A-4, Navaho II, G-26, XB-64 and subsequently XSM/SM-64. Finally, NAA proposed building and testing a final ramjet-powered, what would become the operational missile, designated as the SSM-A-6, Navaho II, G-38, XB-64A and finally XSM-64A/SM-64A.

The first part of Phase 1 testing began at Edwards Air Force Base, Calif., to prove the basic flight characteristics and reliability of the new design.

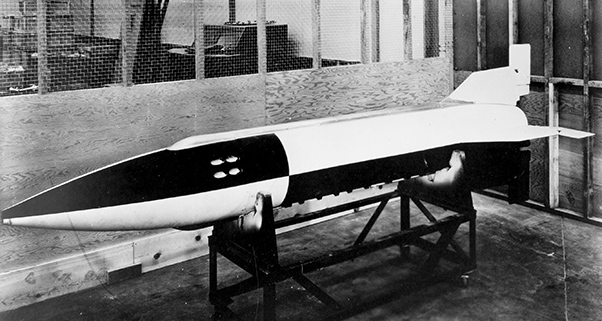

North American Aviation NATIV missile program was undertaken to give NAA experience in the field of rocketry, then its infancy. (Courtesy photograph)

Next, the Air Force utilized the Air Force Missile Test Center at Cape Canaveral, Fla., for operational testing.  The prototype X-10 took to the air for the first time on Oct. 14, 1953, for a successful 32 minute flight, safely returning to Edwards. Shortly after the X-10 program began, NAA received the go-ahead to construct five XB-64 test missiles and a short time later they began constructing the mockup for the XB-64A.  Despite a successful beginning to the flight program, challenges beset the project. Between Oct. 14, 1953, and March 29, 1955, NAA used five X-10 test vehicles and conducted 15 flights at Edwards.  The vehicles reached a maximum speed of Mach 1.84 and max altitude of 41,800 feet, but NAA lost four of the five test vehicles, two of them on their first flights. Surprisingly it was the first prototype, GM-19307, which survived the test program having made eight of the fifteen test flights at Edwards before being retired.

Once NAA completed the initial test program at Edwards, the X-10 project moved to the Air Force Missile Test Center in Florida for the remainder of the flight program.

East Coast testing allowed for better checkout of the XN-6 autonavigator system, autopilot control modes as well as correct dive techniques that the SM-64 missiles would use while in flight.

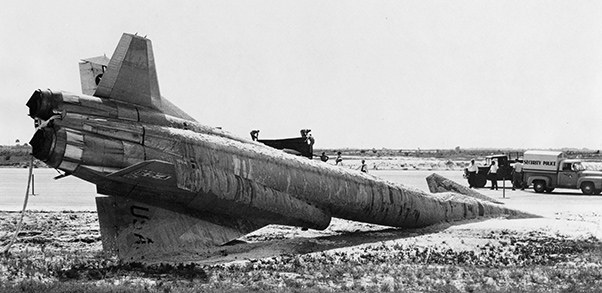

Flights out of the Air Force Missile Test Center at Cape Canaveral, Fla., had their share of X-10 mishaps just like the flights out of Edwards Air Force Base, Calif. X-10 Number 52-4 performed an uncontrolled landing on the Skid Strip. (Courtesy photograph)

The East Coast tests went much better than the testing at Edwards.  Of the initial 12 flights made between Aug. 19, 1955, and Nov. 20, 1956, six performed without flaw, and one X-10, number 52-1, reached a record speed for turbojet aircraft on Feb. 29, 1956, when it reached a maximum speed of Mach 2.06 before returning to perform a safe autolanding back at the Cape Canaveral Skid Strip.

At the end of Phase 1 testing, North American had built a total of 13 X-10 missiles with nine expended during flight testing. With Phase 1 of the Navaho program now complete, the Air Force directed that NAA use three of the remaining four missiles as BOMARC missile targets.  As directed, the X-10 team made three flights between Sept. 24, 1958, and Jan. 26, 1959, with two missiles destroyed on landing and other following an in-flight failure prior to the BOMARC being launched. Only one X-10 survived the test program, the first prototype GM-19307, which is proudly on display at the National Museum of the United States Air Force in Dayton, Ohio.

With the initial objectives met by the X-10, the program was ready to move on to Phase 2, the rocket launched, ramjet-powered, XSM-64.
