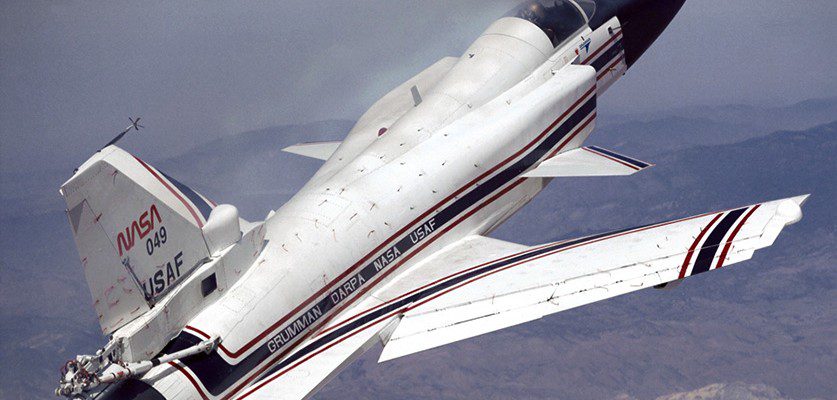

X-29 Advanced Technology Demonstrator Aircraft tests forward-swept wings

The Grumman X-29 was an American experimental aircraft that tested a forward-swept wing, canard control surfaces, and other novel aircraft technologies. The X-29 was developed by Grumman, and the two built were flown by NASA and the U.S. Air Force.

The aerodynamic instability of the X-29s airframe required the use of computerized fly-by-wire control. Composite materials were used to control the aeroelastic divergent twisting experienced by forward-swept wings, and to reduce weight. The aircraft first flew in 1984, and two X-29s were flight tested through 1991.

The aircraft’s forward-swept wings were mounted well back on the fuselage, while its canards (horizontal stabilizers to control pitch) were in front of the wings instead of on the tail. The complex geometries of the wings and canards combined to provide exceptional maneuverability, supersonic performance and a light structure. Air moving over the forward-swept wings tended to flow inward toward the root of the wing instead of outward toward the wing tip as occurs on an aft-swept wing. This reverse airflow kept the wing tips and their ailerons from stalling at high angles of attack (direction of the fuselage relative to the air flow).

The fighter-size X-29 also explored the use of advanced composites in aircraft construction; variable camber wing surfaces; the unique forward-swept wing and its thin supercritical airfoil; strake flaps; close-coupled canards; and a computerized fly-by-wire flight control system to maintain control of the otherwise unstable aircraft.

Research results showed that the configuration of forward-swept wings, coupled with movable canards, gave pilots excellent control response at up to 45 degrees angle of attack, higher than comparable fighter aircraft. During its flight history, X-29s were flown on 422 research missions. Aircraft No. 1 flew 242 in the Phase 1 portion of the program; 120 flights were flown by aircraft No. 2 in Phase 2; and 60 flights were completed in a follow-on “vortex control” phase.

Before World War II, some gliders with forward-swept wings existed, and the the National Advisory Committee for Aeronautics (NACA) Langley Memorial Aeronautical Laboratory in Virginia, performed wind-tunnel studies on the concept in 1931.

Germany developed a jet-powered aircraft with forward-swept wings, the Junkers Ju-287, during the war. The concept, however, was not successful because the technology and materials did not exist to construct the wing rigid enough to overcome bending and twisting forces without making the aircraft too heavy. Hamburger Flugzeugbau designed and built the Hansa Jet HFB-320 in the early 1960s; the aircraft first flew in 1964. The company built 45 HFB-320s, the only certified civilian business jet to use a forward-swept-wing.

The introduction of composite materials in the 1970s opened a new field of aircraft construction, making it possible to design rugged airframes and structures stronger than those made of conventional materials, yet lightweight and able to withstand tremendous aerodynamic forces.

The X-29’s thin supercritical wing was of composite construction. State-of-the-art composites permit aeroelastic tailoring, which allows the wing some bending but limits twisting and eliminates structural divergence within the flight envelope (deformation of the wing or breaking off in flight).

In 1977, the Defense Advanced Research Projects Agency and the U.S. Air Force issued proposals for a research aircraft designed to explore the forward-swept wing concept. The aircraft was also intended to validate studies that predicted better control and lift qualities in extreme maneuvers and possibly reduce aerodynamic drag, as well as fly more efficiently at cruise speeds.

Grumman was chosen in December 1981 to receive an $87 million contract to build two X-29 aircraft. They were to become the first new X-series aircraft in more than a decade. First flight of the No. 1 X-29 was Dec. 14, 1984, while the No. 2 aircraft first flew on May 23, 1989.


Flight control system
The flight control surfaces on the X-29 were the forward-mounted canards, which shared the lifting load with the wings and provided primary pitch control. The wing flaperons (combination flaps and ailerons) were used to change wing camber and function as ailerons for roll control when used asymmetrically. In addition, the strake flaps on each side of the rudder augmented the canards with pitch control. The control surfaces were linked electronically to a triple-redundant digital fly-by-wire flight control system that provided an artificial stability.

The particular forward-swept wing, close-coupled canard design used on the X-29 was highly unstable. The X-29 flight control system compensated for this instability by sensing flight conditions such as attitude and speed and through computer processing, continually adjusted the control surfaces with up to 40 commands each second. Conventionally configured aircraft achieved stability by balancing lift loads on the wing with opposing downward loads on the tail at the cost of drag. The X-29 avoided this drag penalty through its relaxed static stability.

Each of the three digital flight control computers had an analog backup. If one of the digital computers failed, the remaining two took over. If two of the digital computers failed, the flight control system switched to the analog mode. If one of the analog computers failed, the two remaining analog computers took over. The risk of total systems failure in the X-29 was equivalent to the risk of mechanical failure in a conventional system.


Phase 1 flights
The No. 1 aircraft’s research flights demonstrated that, because the air moving over the forward-swept wing flowed inward rather than outward, the wing tips remained unstalled at the moderate angles of attack. Phase 1 flights also demonstrated that the aeroelastic-tailored wing did, in fact, prevent structural divergence of the wing within the flight envelope, and that the control laws and control surface effectiveness were adequate to provide artificial stability for this otherwise extremely unstable aircraft and provided good handling qualities for the pilots.

The aircraft’s supercritical airfoil also enhanced maneuvering and cruise capabilities in the transonic regime. Developed by NASA and originally tested on an F-8 in the 1970s, supercritical airfoils – flatter on the upper wing surface than conventional airfoils – delayed and softened the onset of shock waves on the upper wing surface, reducing drag. The Phase 1 flights also demonstrated that the aircraft could fly safely and reliably, even in tight turns.


Phase 2 flights
The No. 2 X-29 investigated the aircraft’s high angle-of-attack characteristics and the military utility of its canard and forward-swept wing configuration. In Phase 2, flying at up to 67 degrees angle of attack (also called high alpha), the aircraft demonstrated much better control and maneuvering qualities than computational methods and simulation models predicted. The No. 1 X-29 was limited to 21 degrees angle-of-attack maneuvering.

During Phase 2 flights, NASA, Air Force and Grumman project pilots reported the X-29 aircraft had excellent control response to 45 degrees angle of attack and still had limited controllability at 67 degrees angle of attack. This controllability at high angles of attack can be attributed to the aircraft’s unique forward-swept wing and canard design. The NASA/Air Force-designed high-gain flight control laws also contributed to good flying qualities. Flight control law concepts used in the program were developed from radio-controlled flight tests of a 22-percent X-29 drop model at NASA Langley.

NASA and Air Force Flight Test Center (now Air Force Test Center) engineers at Edwards Air Force Base performed the detail design work. The X-29 achieved its high-alpha controllability without leading edge flaps on the wings for additional lift and without moveable vanes on the engine’s exhaust nozzle to change or “vector” the direction of thrust. Researchers documented the X-29’s aerodynamic characteristics at high angles of attack using a combination of pressure measurements and flow visualization. Flight test data satisfied the primary objective of the X-29 program: to evaluate the ability of X-29 technologies to improve future fighter aircraft mission performance.


Vortex flow control
In 1992, the Air Force initiated a program to study the use of vortex flow control as a means of providing increased aircraft control at high angles of attack when the normal flight control systems are ineffective.

The No. 2 X-29 was modified with the installation of two high-pressure nitrogen tanks and control valves, with two small nozzle jets located on the forward upper portion of the nose. The purpose of the modifications was to inject air into the vortices that flow off the nose of the aircraft at high angles of attack.

Wind tunnel tests at the Air Force’s Wright Laboratory (now AFRL) and at the Grumman Corporation showed that injection of air into the vortices would change the direction of vortex flow and create corresponding forces on the nose of the aircraft to change or control the nose heading.

From May to August 1992, 60 flights successfully demonstrated vortex flow control (VFC). VFC was more effective than expected in generating yaw (left-to-right) forces, especially at higher angles of attack where the rudder loses effectiveness. VFC was less successful in providing control when sideslip (relative wind pushing on the side of the aircraft) was present, and it did little to decrease rocking oscillation of the aircraft. Overall, VFC, like the forward-swept wings, showed promise for the future of aircraft design.

The X-29 did not demonstrate the overall reduction in aerodynamic drag that earlier studies had suggested. The X-29 program did demonstrate several new technologies, as well as new uses of proven technologies, including aeroelastic tailoring to control structural divergence and use of a relatively large, close-coupled canard for longitudinal control. In addition, the program validated control of an aircraft with extreme instability while still providing good handling qualities; use of three-surface longitudinal control; use of a double-hinged trailing-edge flaperon at supersonic speeds; control effectiveness at high angles of attack; vortex control; and military utility of the overall design.
